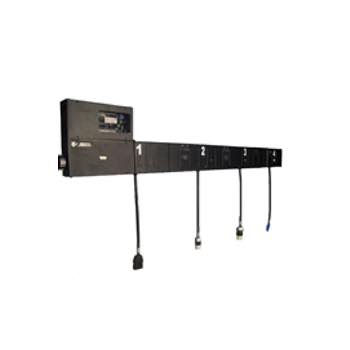

450 Series Connector Strips

Altman Lighting’s 450 Series Connector Strips feature rugged steel construction, innovative data distribution, and a wide array of available connector types and hanging hardware. Each Connector Strip is custom built for the specifications of the project.

Specifications

  • Rugged 18 gauge steel construction with 14 gauge end caps and joiners. Center holes on end caps provided for conduit fittings
  • A variety of flush mount and pigtail connectors are available for 20A, 30A, 50A, and 100A circuits. Individual circuits can be wired to multiple pigtails or receptacles.
  • Active or passive data management for distribution of DMX-512A/ RDM to distributed dimmers, automated fixtures, and LED Luminaires.
  • Optional per circuit indicator lamps available.
  • Easy to ship, assemble, and service
  • 1-Tool Assembly (#2 Phillips Screwdriver)
  • DIN Rail mounted screw-less spring terminals for termination of 20A loads (up to #8 AWG). Screw terminals for 30A, 50A, and 100A wiring.
  • DIN Rail mounted control box for integration of DMX-512A/ RDM Opto Splitters, Ethernet nodes, and other DIN rail mounted control devices.
  • Standard 2” high white vinyl numbers for circuit identification on one side. Numbering on both sides, custom vinyl colors, and lamicoid circuit identification plates are available
  • cETLus Listed
  • Made in the USA.
